Gabion boxes, rockfall nets, chain link fences, noise barriers — ISO/CE certified, factory-direct.
Angu Wire Mesh offers a complete range of wire mesh products for construction, mining, landscaping, and military applications. All products are ISO 9001:2015 and CE certified.
Common questions about our wire mesh products, specifications, and ordering.

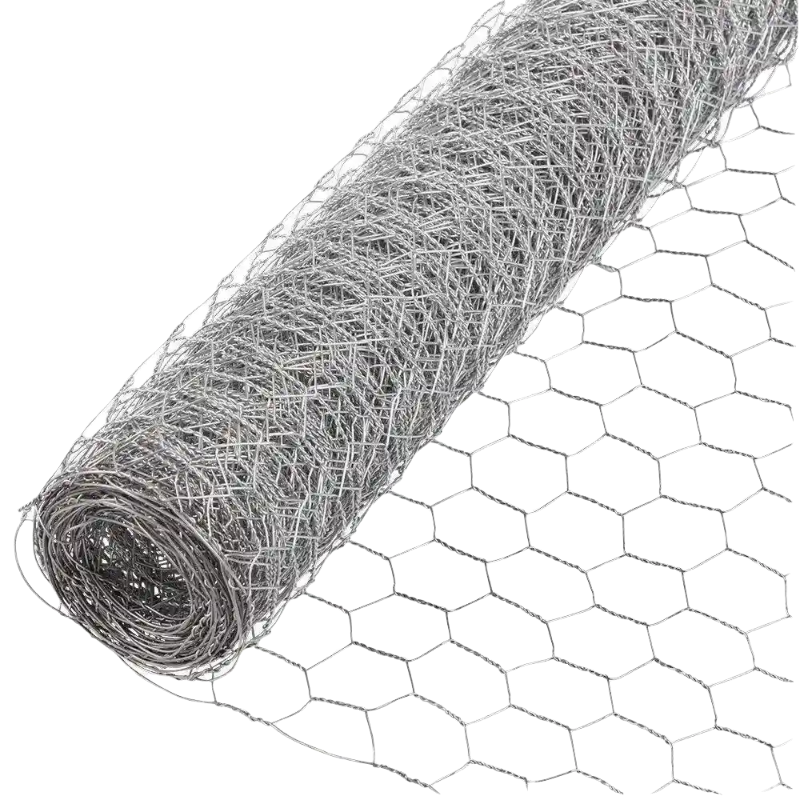

25mm hexagonal wire mesh, versatile for poultry fencing and small animal enclosures.
Hexagonal wire mesh — also known as chicken wire or rabbit wire — is a versatile woven wire mesh manufactured using the double-twist technique. The hexagonal mesh opening provides uniform stress distribution, making it ideal for gabion baskets, poultry enclosures, garden fencing, and erosion control applications.
## Manufacturing Technique
The double-twist weaving process twists each pair of wires together at every intersection, creating a hexagonal pattern with superior structural benefits: - **No Unraveling**: If one wire is cut, the double-twist prevents the mesh from unraveling — unlike single-twist or welded mesh - **Uniform Load Distribution**: Hexagonal geometry distributes stress evenly across the entire mesh surface - **Natural Flexibility**: The woven structure conforms to irregular surfaces and terrain without losing strength - **High Tensile Efficiency**: The twist points act as hinges, absorbing impact without permanent deformation
## Key Advantages
- **Exceptional Flexibility**: Easily wrapped around curves, corners, and irregular shapes. Ideal for terrain-following applications like gabion retaining walls and slope protection. - **Corrosion Resistance**: Hot-dipped galvanized coating (>=80g/m2) provides 10-15 years outdoor service. Optional heavy galvanizing (>=120g/m2) or PVC coating for extended service life. - **Cost-Effective**: Lower wire consumption compared to welded mesh of equivalent strength. Efficient manufacturing process keeps production costs competitive. - **Lightweight & Easy Handling**: Standard rolls (30m x 1.0m) weigh only 8-15 kg, easily handled by one person. Simple cutting with wire snips. - **Multi-Functional**: Same mesh serves gabion baskets, poultry enclosures, garden fencing, tree guards, plaster reinforcement, and erosion control — reducing inventory complexity.
## Technical Specifications
| Parameter | Value | |-----------|-------| | Mesh Type | Double-twist hexagonal woven | | Mesh Opening | 25mm (1") — hexagon flat width | | Wire Diameter | 0.8mm standard (0.5mm-1.2mm available) | | Material | Q195/Q235 Low Carbon Steel Wire | | Tensile Strength | 350-550 MPa | | Zinc Coating | >=80g/m2 (standard) / >=120g/m2 (heavy) | | Roll Width | 1.0m, 1.2m, 1.5m, 2.0m | | Roll Length | 30m standard (10m, 50m available) | | Selvage | Knuckled (standard) | | Weave Direction | Reverse twist (prevents unraveling) | | Galvanizing Method | Hot-dipped (after weaving) | | Standard | EN 10223-2, ASTM A975, YB/T 4193 | | Certification | ISO 9001, CE |
## Mesh Size Options (Reference)
| Mesh Size | Typical Wire | Primary Application | |-----------|-------------|---------------------| | 13mm (1/2") | 0.5-0.7mm | Bird/rodent exclusion, small animal cages | | 19mm (3/4") | 0.6-0.8mm | Poultry, rabbits, garden protection | | **25mm (1")** | **0.7-1.0mm** | **Gabion baskets, general fencing, tree guards** | | 32mm (1-1/4") | 0.8-1.2mm | Rock fall protection, gabion mattresses | | 50mm (2") | 1.0-1.5mm | Heavy gabions, slope protection | | 80mm (3") | 1.5-2.0mm | Civil engineering, riverbank protection |
## Coating Options
1. **Hot-Dipped Galvanized (Standard)**: >=80g/m2 zinc coating applied after weaving. Silver-grey finish. Service life 10-15 years in normal outdoor conditions. 2. **Heavy Galvanized**: >=120g/m2 zinc coating. Enhanced corrosion resistance for marine and industrial environments. Service life 20-25 years. 3. **PVC-Coated**: Galvanized core + PVC coating (green/black). Combined UV and corrosion protection. Service life 20-25 years. Aesthetic appeal for visible applications. 4. **Stainless Steel (SS304/SS316)**: For extreme corrosion environments — coastal, chemical, food processing. Service life 30+ years. Premium pricing.
## Applications
### Civil Engineering & Infrastructure - **Gabion Baskets & Mattresses**: Rock-filled containers for retaining walls, riverbank stabilization, and erosion control - **Slope Protection**: Rock fall netting on highway and railway cuttings - **Drainage Filtration**: Filter layer behind retaining walls and in drainage systems
### Agriculture & Livestock - **Poultry Enclosures**: Chicken runs, aviaries, and breeding cages - **Rabbit & Small Animal Housing**: Hutches, runs, and perimeter fencing - **Crop Protection**: Tree guards, seedling protection, and garden fencing - **Beekeeping**: Apiary surrounds and exclusion barriers
### Construction & Building - **Plaster Reinforcement**: Anti-crack mesh for stucco, render, and plaster walls - **Insulation Support**: Securing insulation materials to walls and pipes - **Temporary Partitions**: Dust barriers and site separation
### Residential & Garden - **Garden Fencing**: Decorative and functional boundary fencing - **Compost Bins**: DIY compost containers and vegetable bed lining - **Pest Control**: Underground barriers against rodents and burrowing animals
## Packaging & Delivery
- **Packaging**: Rolls wrapped in waterproof plastic film. Pallet packing available for container loading. - **Container Loading**: 20ft GP ~ 2000-3000 rolls; 40ft HQ ~ 4000-6000 rolls (depends on dimensions) - **Lead Time**: 5-12 days for standard specifications; 12-20 days for custom orders - **Shipping**: FOB Tianjin / CIF / DDP. Sea and air freight available.
## Quality Assurance
- ISO 9001:2015 certified manufacturing process - CE certified product (EN 10223-2 compliance) - Raw material test reports (mill certificates) provided with each batch - Pre-shipment inspection: mesh size, wire diameter, zinc coating weight, tensile strength - Reverse-twist verification test (unraveling resistance) - SGS/BV third-party inspection available upon request
## Why Choose Angu Wire Mesh?
- 15+ years manufacturing experience in Anping — China's Wire Mesh Capital - Factory-direct pricing — no middleman markup - Full mesh size range: 13mm to 80mm, wire 0.5mm to 2.0mm - Multiple coating options: galvanized, heavy galvanized, PVC, stainless steel - In-house gabion manufacturing capability — buy mesh or finished baskets - OEM/ODM: custom roll dimensions, packaging, and private labeling - Export to 30+ countries worldwide - 24-hour quote turnaround
25mm hexagonal wire mesh, versatile for poultry fencing and small animal enclosures.
| Mesh Type | Double-twist hexagonal woven |
|---|---|
| Mesh Aperture | 25mm (1") — hexagon flat width |
| Wire Diameter | 0.8mm standard (0.5mm-1.2mm available) |
| Material | Q195/Q235 Low Carbon Steel Wire |
| Tensile Strength | 350-550 MPa |
| Zinc Coating | >=80g/m2 standard / >=120g/m2 heavy |
| Galvanizing Method | Hot-dipped (after weaving) |
| Roll Width | 1.0m, 1.2m, 1.5m, 2.0m |
| Roll Length | 30m standard (10m, 50m available) |
| Selvage Type | Knuckled |
| Twist Direction | Reverse twist (anti-unraveling) |
| Standard | EN 10223-2, ASTM A975, YB/T 4193 |
| Certifications | ISO 9001, CE |
| Service Life | 10-15 years (standard galvanized) |
| Unit Weight | ~8-15 kg per roll (30m x 1.0m at 25mm/0.8mm) |
| MOQ | 50 pieces |
FOB Tianjin, per roll
