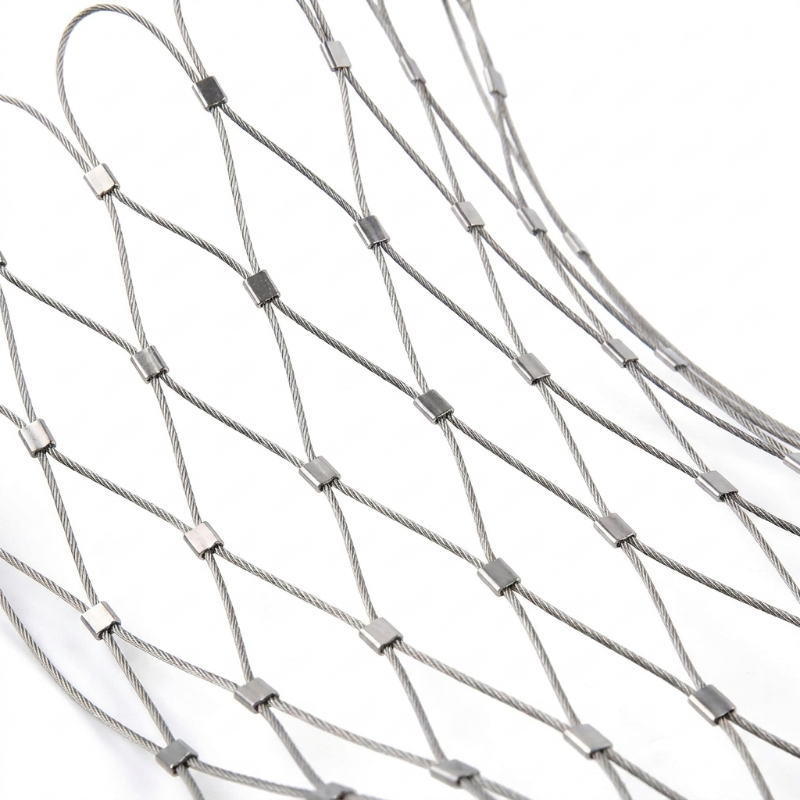

Heavy-duty SS316 zoo rope mesh, 3.0mm cable x 100mm diamond opening. Ferrule-connected. Engineered for large animal enclosures (big cats, primates, bears). Breaking strength ~900 kgf. MOQ 30 m2, 15-25 day delivery.
The 3.0mm zoo-grade stainless steel rope mesh is engineered specifically for large animal enclosures where safety is non-negotiable. The 3.0mm SS316 cable provides 900+ kgf breaking strength — sufficient to contain large predators including tigers, lions, bears, and great apes — while the 100mm diamond opening maintains visual transparency for visitor experience.
## Why 3.0mm for Zoo Applications?
- **Animal Impact Load**: Large animals (200-300 kg) can charge at 15-20 m/s. The 3.0mm cable absorbs and distributes this impact without failure. - **Chew Resistance**: 3.0mm cable is too thick for most animals to chew through. 7x7 construction provides redundancy — even if outer wires are damaged, inner strands maintain integrity. - **Climb Resistance**: 100mm opening is too small for adult hand/foothold but large enough to prevent small primate hand insertion. - **Visual Transparency**: 100mm diamond at 3.0mm cable = ~85% open area. Visitors see animals clearly; animals feel less confined.
## Key Advantages
- **Certified Safety**: Engineered to meet zoo safety standards (AZA, EAZA). Load test certificates available. - **30+ Year Lifespan**: SS316 in outdoor environments — no corrosion, no UV degradation, no maintenance. - **Custom Panel Sizes**: Built to exact enclosure dimensions. Curved, angled, and 3D geometries accommodated. - **Aesthetic Superiority**: Invisible barrier effect — appears as if no barrier exists between visitor and animal. - **Animal Welfare**: Natural light and airflow through mesh. Animals see out (reduces stress) without escape risk. - **Easy Maintenance**: Smooth SS316 surface — hose clean. No painting, no coating renewal.
## Technical Specifications
| Parameter | Value | |-----------|-------| | Cable Diameter | 3.0mm | | Cable Construction | 7x7 (49 wires) | | Cable Material | SS316 stainless steel | | Mesh Opening | 100mm x 100mm (diamond) | | Ferrule Material | SS316 stainless steel | | Breaking Strength | ~900 kgf (single cable) | | Open Area | ~85% | | Panel Size | Custom (up to 20m x 10m) | | Edge Detail | Swage termination to edge cable or frame | | Standard | ASTM A1023, ISO 17746 | | Certification | ISO 9001, load test certificate available |
## Animal-Specific Recommendations
| Animal | Cable | Opening | Rationale | |--------|-------|---------|----------| | Small primates | 1.6mm | 25mm | Prevent hand insertion | | Large primates | 2.4mm | 50mm | Chew resistance | | **Big cats** | **3.0mm** | **100mm** | **Impact load + transparency** | | **Bears** | **3.0mm** | **100mm** | **Claw resistance + impact** | | Large birds | 2.0mm | 50mm | Prevent wing passage | | Hoofstock | 2.4mm | 80mm | Visual barrier |
## Applications
- **Zoo Enclosures**: Big cat, bear, and great ape habitats - **Safari Parks**: Drive-through predator enclosures - **Wildlife Sanctuaries**: Rescue and rehabilitation facilities - **Aviaries**: Large bird flight enclosures (with smaller mesh) - **Aquarium & Marine**: Saltwater-resistant barriers for marine exhibits - **Theme Parks**: Animal encounter barriers and ride safety - **Research Facilities**: Primate and carnivore research enclosures
## Packaging & Delivery
- **Packaging**: Custom panels rolled or flat-packed with protective wrapping. Hardware (tensioners, brackets) included. - **Container Loading**: 20ft GP ~ 200-500 m2; 40ft HQ ~ 400-1000 m2 - **Lead Time**: 15-25 days (each panel custom-built) - **Shipping**: FOB Tianjin / CIF / DDP
Heavy-duty SS316 zoo rope mesh, 3.0mm cable x 100mm diamond opening. Ferrule-connected. Engineered for large animal enclosures (big cats, primates, bears). Breaking strength ~900 kgf. MOQ 30 m2, 15-25 day delivery.
| Cable Diameter | 3.0mm |
|---|---|
| Cable Construction | 7x7 (49 wires) |
| Cable Material | SS316 stainless steel |
| Mesh Opening | 100mm x 100mm (diamond) |
| Ferrule Material | SS316 stainless steel |
| Breaking Strength | ~900 kgf (single cable) |
| Open Area | ~85% |
| Panel Size | Custom (up to 20m x 10m) |
| Edge Detail | Swage termination |
| Standard | ASTM A1023, ISO 17746 |
| Certifications | ISO 9001 + load test cert |
| MOQ | 30 pieces |
FOB Tianjin, per m2
